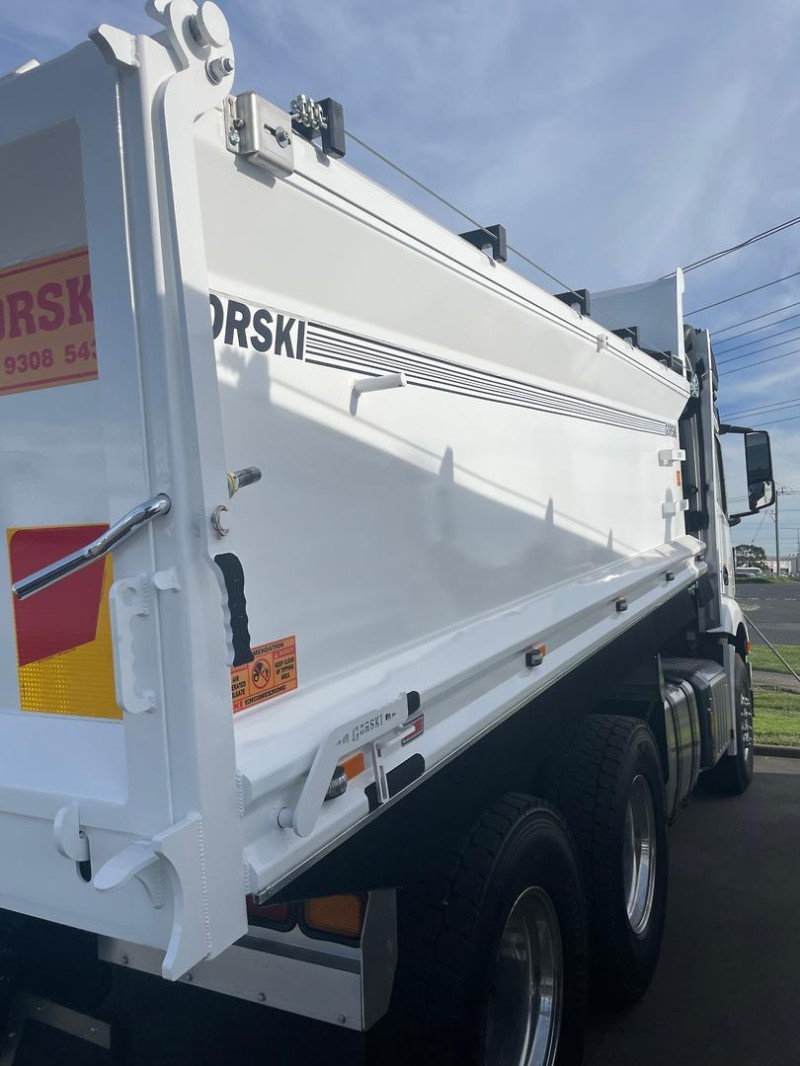

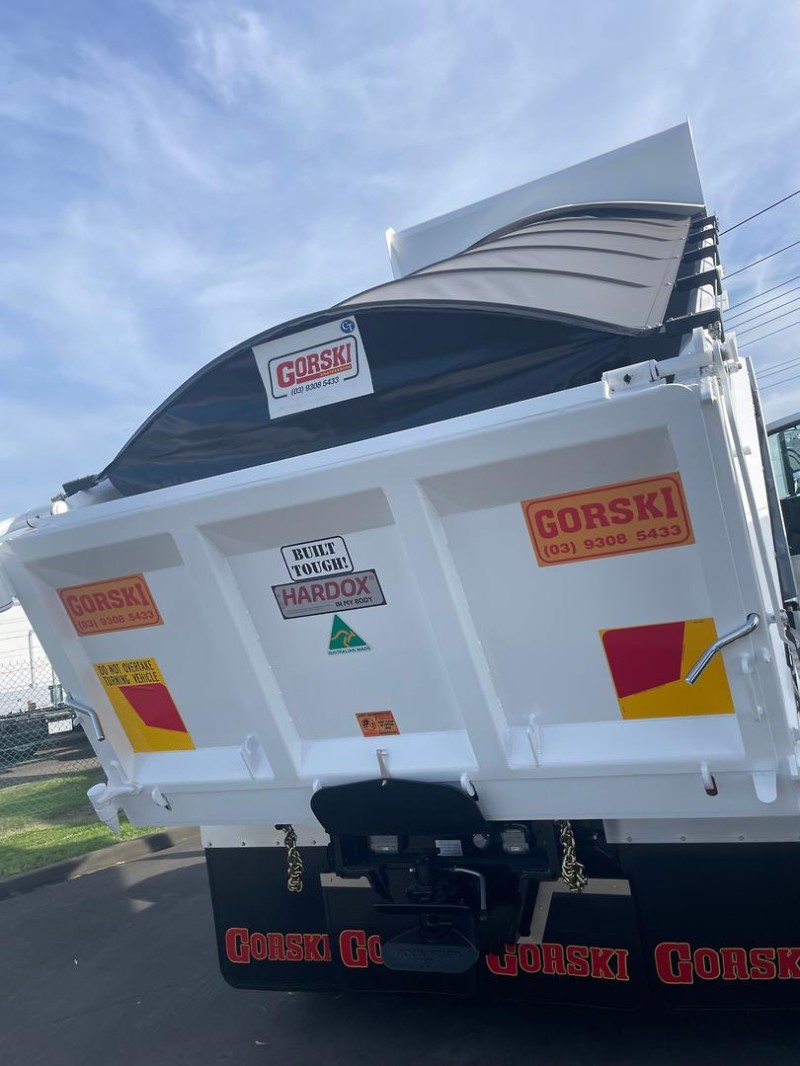

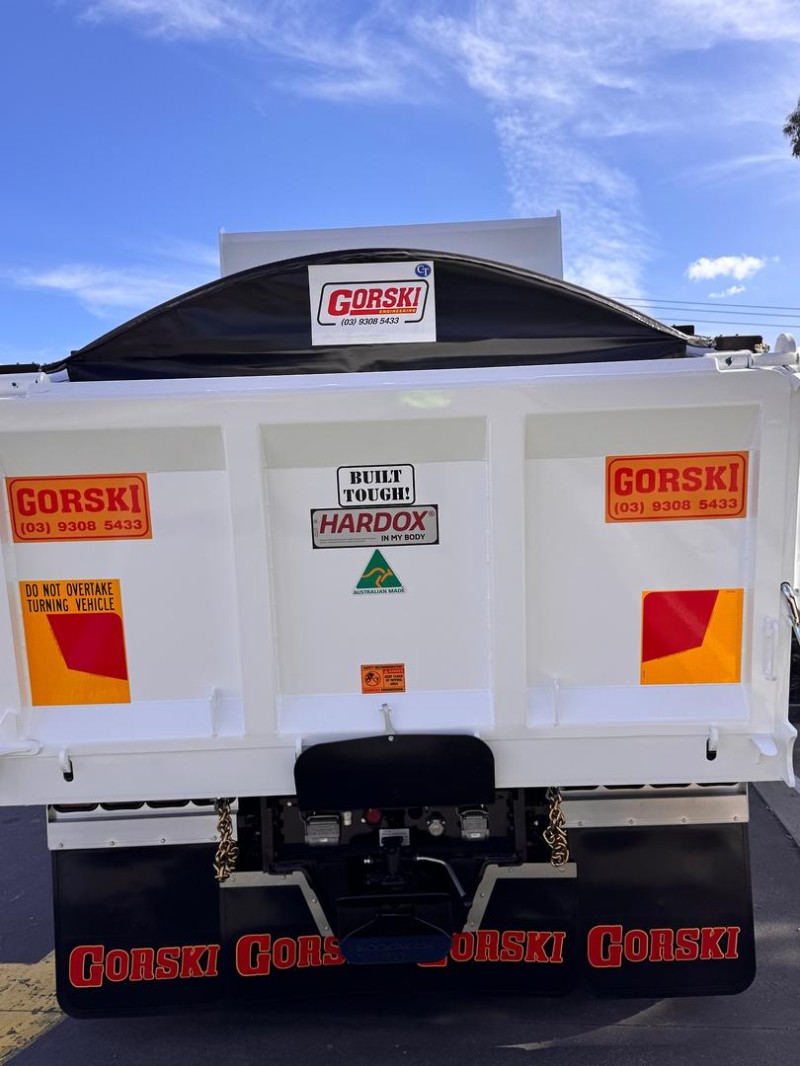

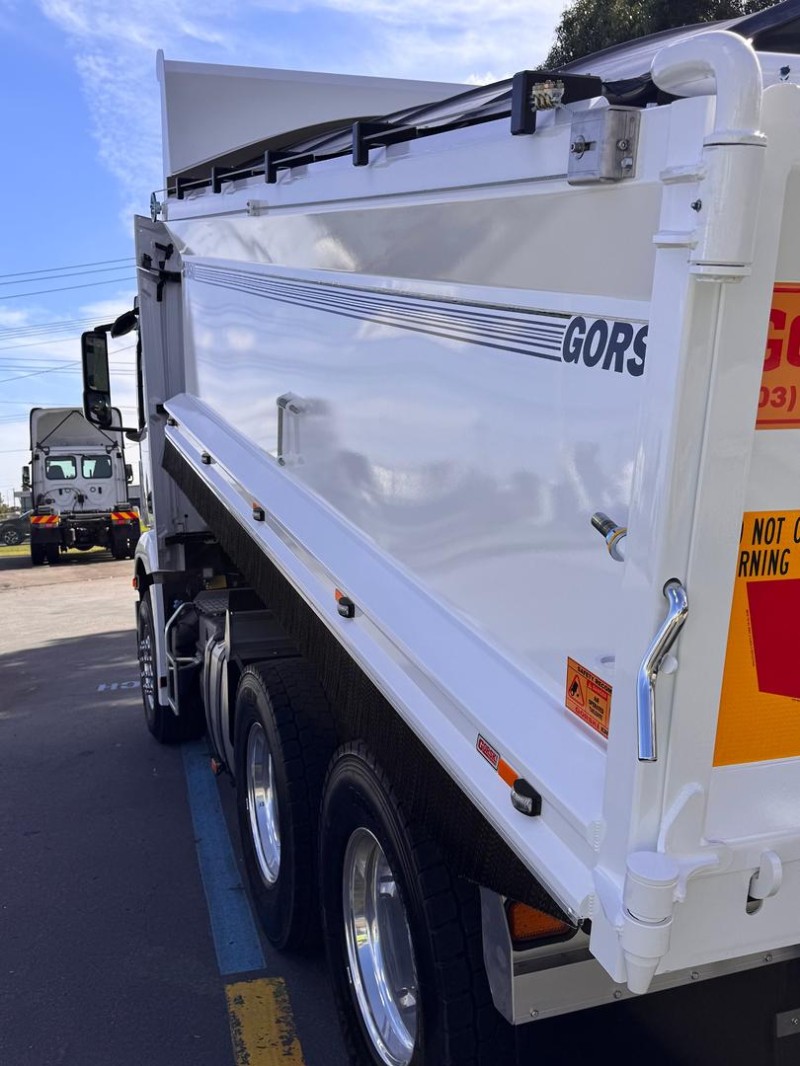

5mm QT450 HARDOX® Tailgate with 50mm 2-way Side Swing kit, air operated
- Custom built and ‘contoured’ Cab Guard with integrated QT450 (Hardox or Equivalent) Tarp shroud

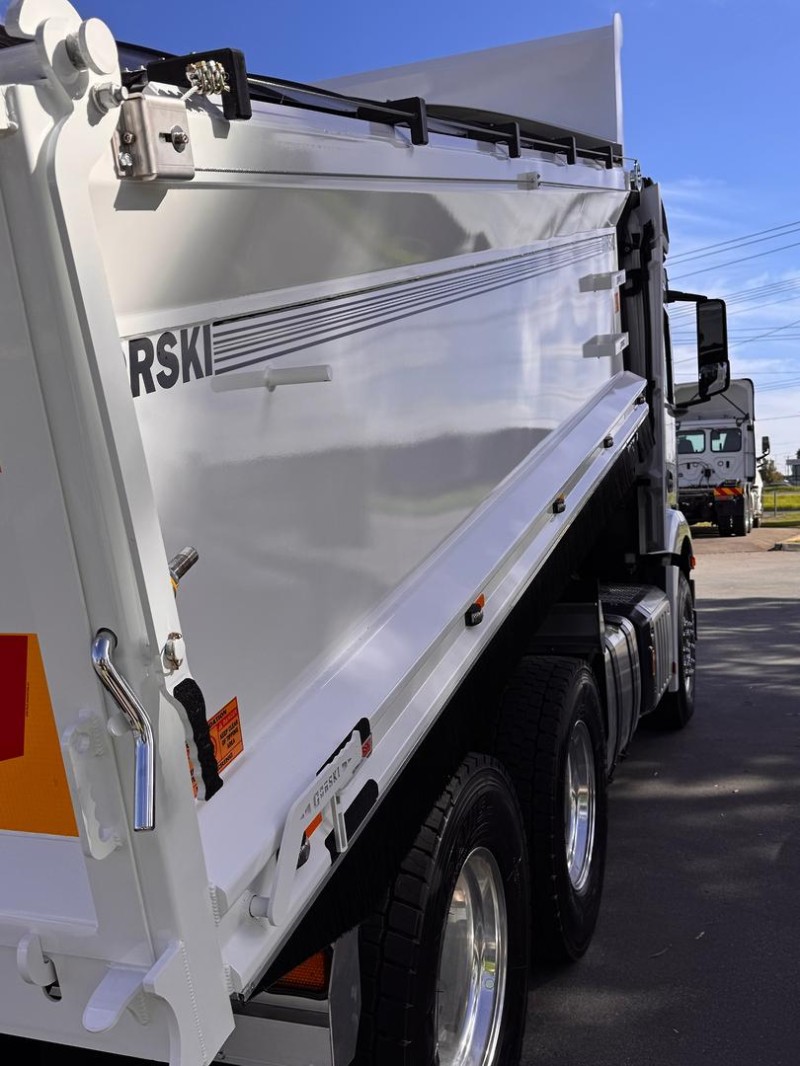

- "Gorski Premium" full length pressed top rails & splash guards
- Angle welded to top of side walls and tail door
- "Gorski Premium" Fabricated Heavy Duty Main bearer 150mm
- Shovel rack fi tted to front of body with ergonomic steps front of body
- Spreader Chains connected to tailgate
Included: 175mm Spray Suppressant full length of body, 4x Gorski Mudfl aps at Rear of Tipper,Underbody Pullout Ladder Drivers Side.
SUBFRAME:
"Gorski Premium" heavy duty main bearers custom length depending on truck airbag/wheel clearance,minimum 125x75x5mm RHS.
Rear body pivots 50mm and removable body safety prop fi tted to subframe.
TOW CONNECTION:

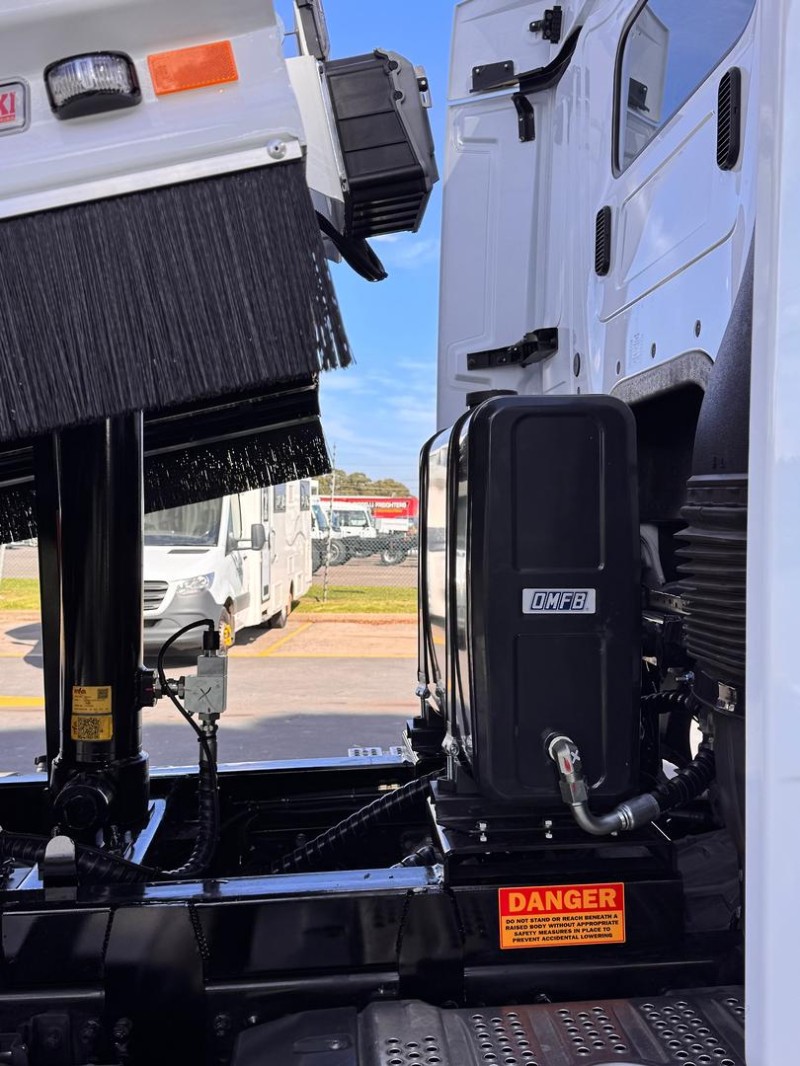

"Gorski Premium" fabricated tow crossmember rated to min 35T (DT3/DT4) max 47T (DT5/DT6) with 50mm Rockinger coupling and 16mm chains. Trailer fittings included with 1" hydraulic coupling for trailer hoist, Duomatic couplings for trailer brakes, tailgate and turntable lock. 7 pin electric plug for trailer electrics and EBS plug also.
Compliant with ADR 62 requirement
-

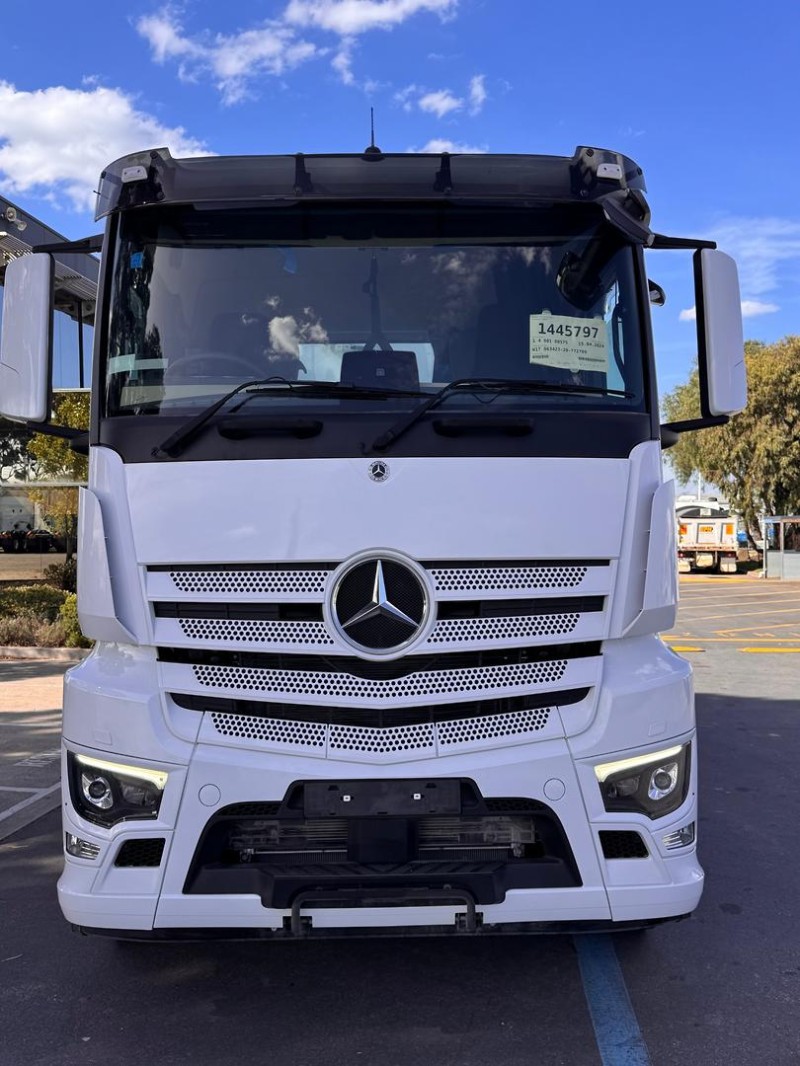

Cab
Exterior sun visor, transparent

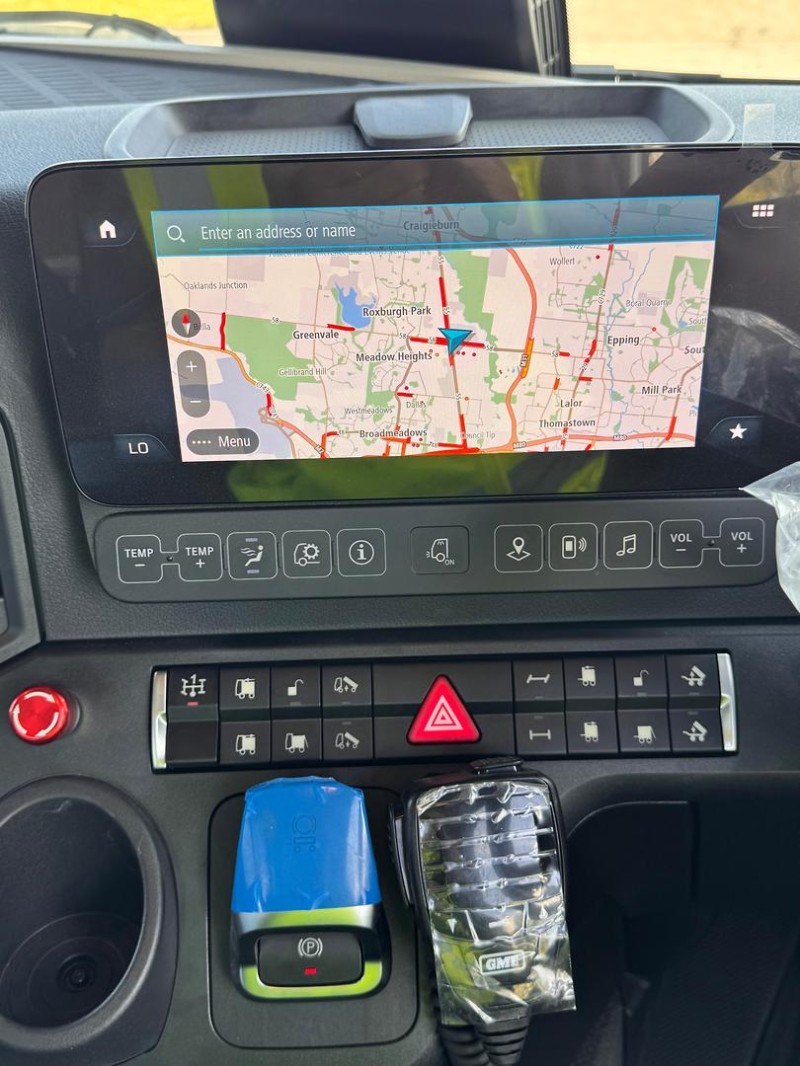

Multimedia cockpit, interactive
Truck navigation

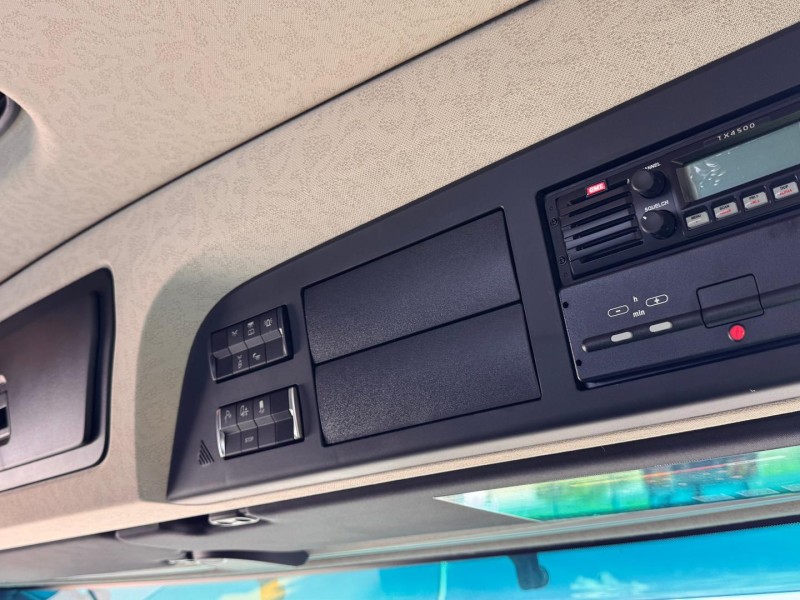

Digital radio
Truck Data Center 8

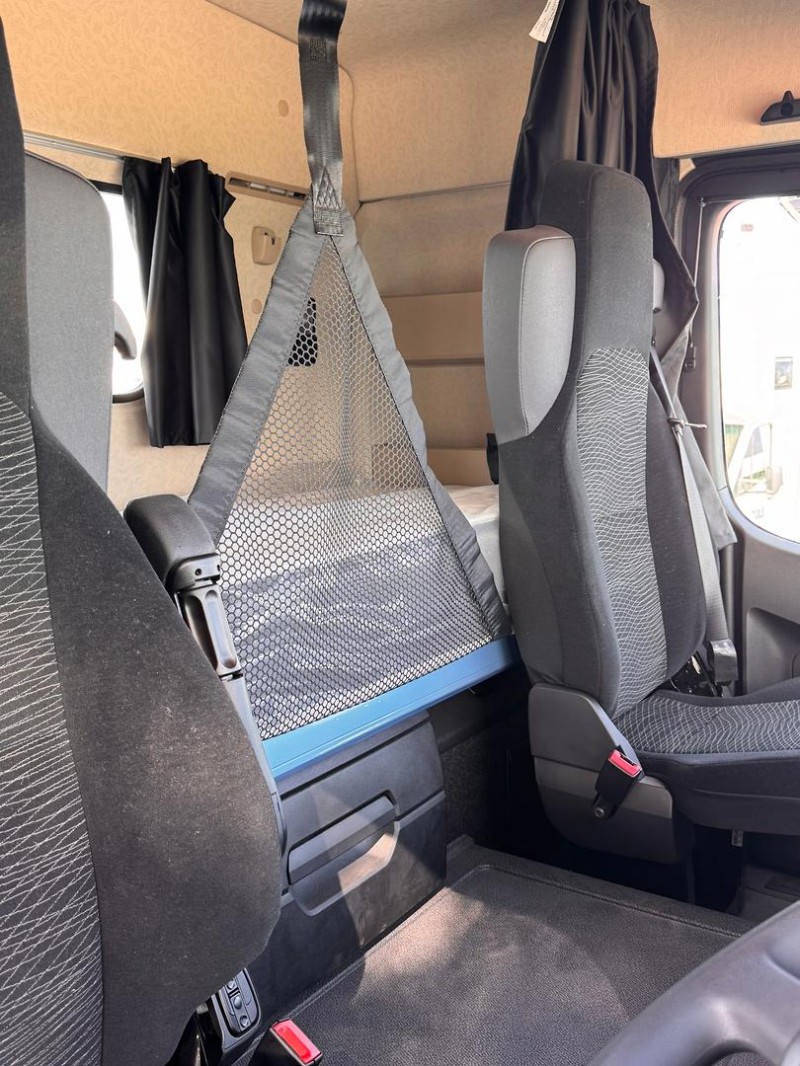

Driver‘s suspension seat, standard
Fold-up co-driver's seat
Air conditioning system
Tinted windscreen with filter band
Air horn, below cab

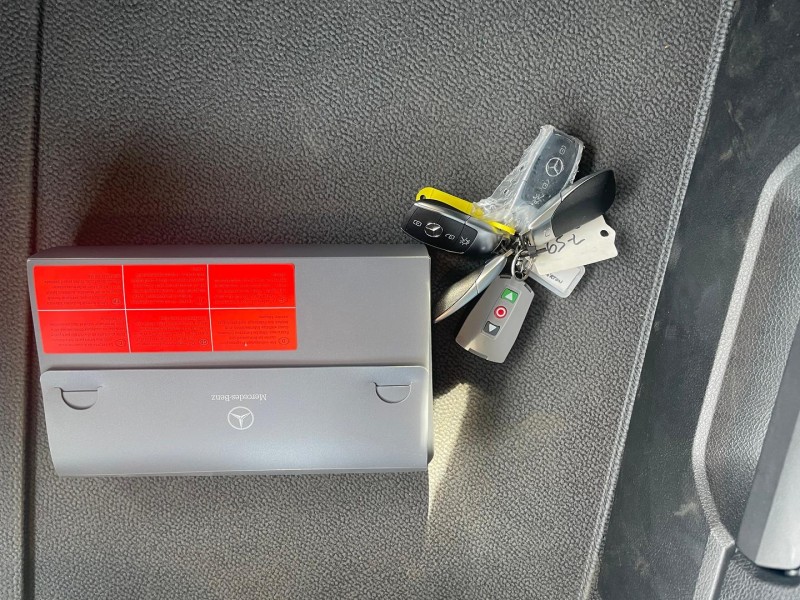

4 remote control keys
Optional equipment
• Leather steering wheel
• Driver and co-driver leather seats
• Driver's suspension seat, comfort
• Co-driver's suspension seat, comfort
• Seat/bunk combination, 1 bunk
• Cab rear wall window
• Curtain for the rear wall window
• Curtain along side of bed(s)
• StyleLine
• TrendLine
• Automatic climate control
• Sidewall window
• MirrorCam
• Construction site filter
• Mercedes star illuminated from behind
• Adjustable air deflectors
• Snap-in air deflectors with cab side deflectors
• Extended central locking
• Compressed-air gun with hose

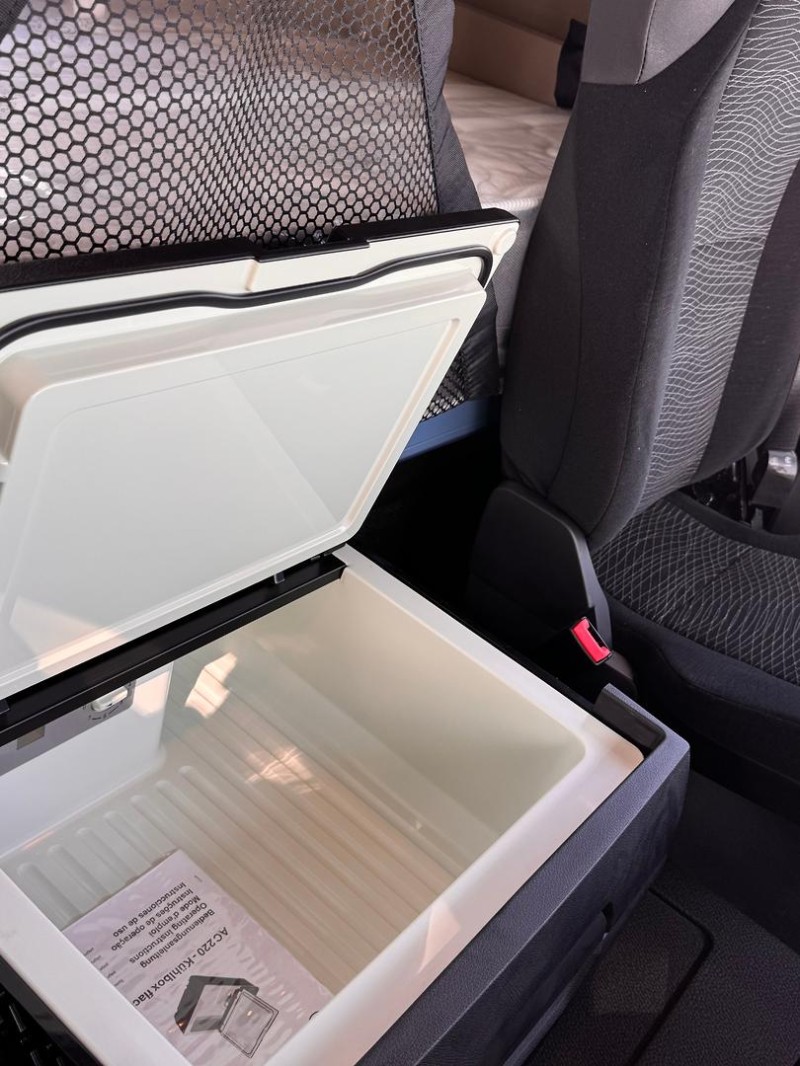

• Pull-out refrigerator under bed
• Toolkit
• Internal yellow grab handles
• Framing for badge below windshield
• L-Cab StreamSpace 2.3 m with 170 mm tunnel
• Cab roof air horns
Driveline
G281-12 speed PowerShift advanced transmission with twin plate clutch
and 3.077 RAR engine RPM 1,591 at 100 km/h
Optional equipment
• Predictive Powertrain Control

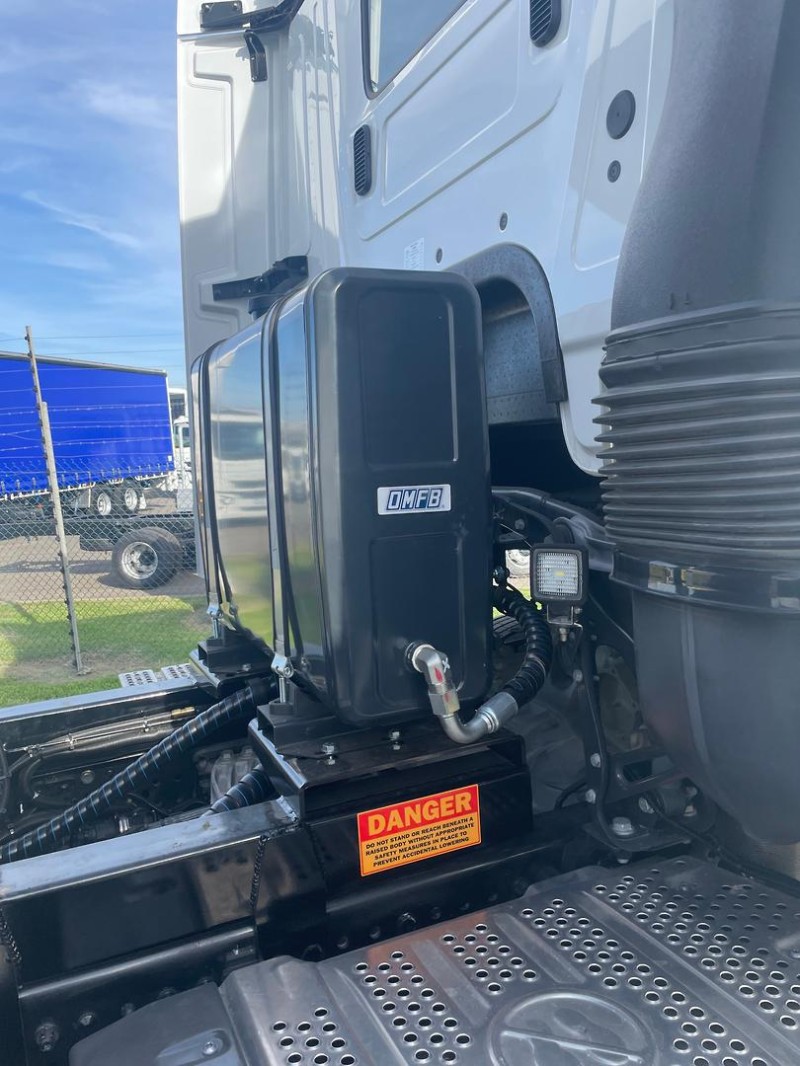

• Power Take Off (PTO) MB, 131-2c, pump
• Engine Power Take Off (PTO), rear, c, hydraulic pump ISO 7653D
Front axle and suspension
7.5 t offset front axle
7.5 t 2 leaf springs

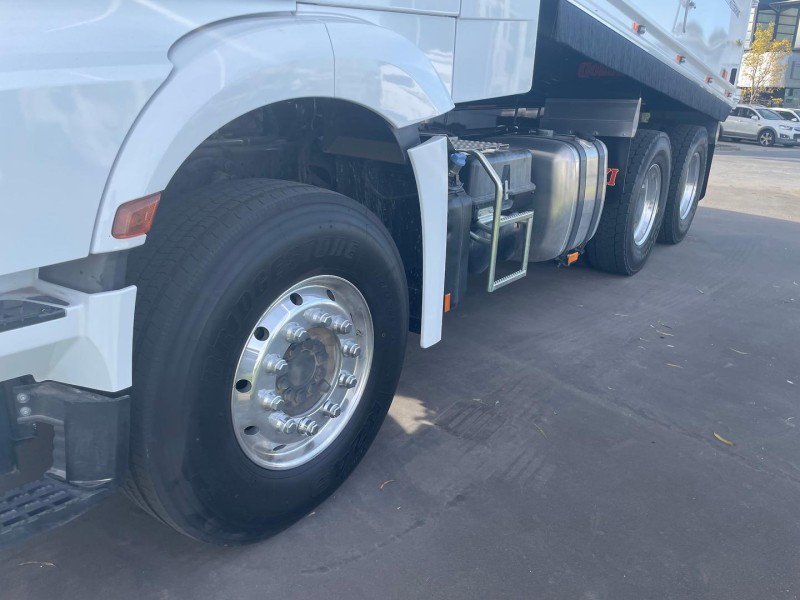

Rear axle and suspension
2 x 13.0 t hypoid rear axles with differential locks
2 x 4 bag rear air suspension
Optional equipment

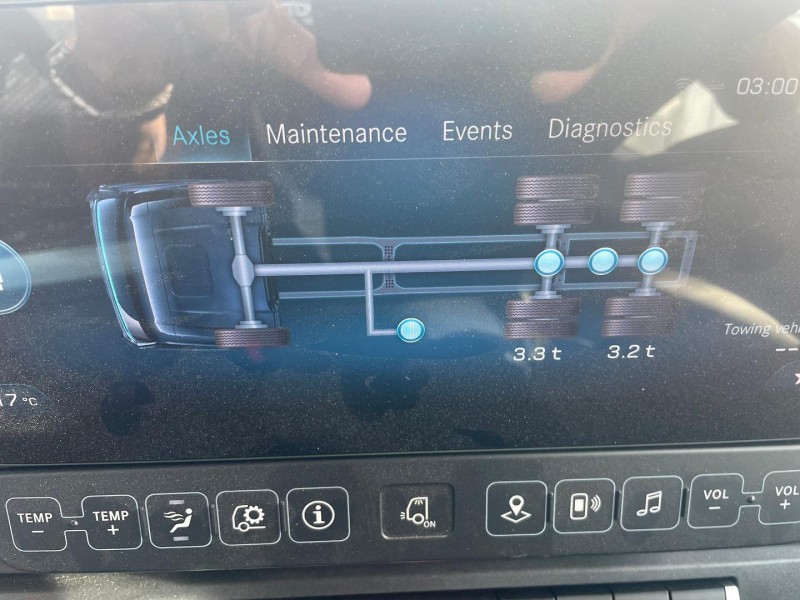

• Axle load measuring device
Brakes
Disc brake with Electronic Braking System (EBS)
Anti-lock Braking System (ABS)
Traction Control System (ASR)
High performance engine brake
Electronic park brake
Optional equipment
• Independent trailer brake
• Independent trailer brake, electronic
Wheelbase and frame
5,500 mm wheelbase with 2,850 mm rear over
